RTM-MAKULU

NB – Please note that these orders are made on request and will carry a lead time from date of payment.

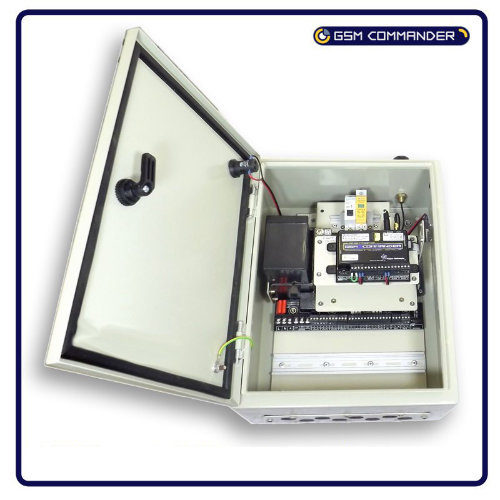

Steel box with lazer-cut mounting plates & brackets, includes:

* Specialized ultra-rugged 5×5 expansion unit including 30A relay and extensive power filtering (AC and DC)
* Surge protector, circuit breaker, enclosed 15W PSU, & 7AH 12V Battery with dedicated charger.
* Antenna, door switch, additional 250mm DIN rail space

Optional Extra’s:

* Analog Expansion (GMA04) -OR- Digital Temp Expansion (GMT04)

* Cable theft Monitor (CTM001)

* Expansion Units (GM0505 or GM1000)

Product Highlights

• Ultimate man size ready-to-mount steel enclosure 300x400x200mm
• Entire assembly on a removable base plate, for easy of wiring
• 2 tier levels, allowing space for the GSM Commander and a Analog Expansion or Cable Theft Monitoring
• 5 x opto isolated digital inputs on PCB Board (input 6 & 7 have a pulse stretcher built in)
• 5 x relay outputs on PCB Board (4 x 8amp relay outputs and 1 x 30amp relay output)
• Extensive power filtering for both AC and DC
• Enclosed 15W PSU
• Built in 7AH 12V Battery with dedicated charger.
• 2 x temperature inputs built into the PCB Board, no need for a GT002
• Expansion Port on the PCB Board allowing expansion of inputs and outputs
• Includes Surge protector and circuit breaker on the top Din Rail
• Extra Din Rail space at the bottom for you convenience
• Door trigger switch, alerting you when the box is opened.
• Outdoor Antenna 2dBi knobby screw mount, Penta-band
• LED on door to indicate battery or AC power

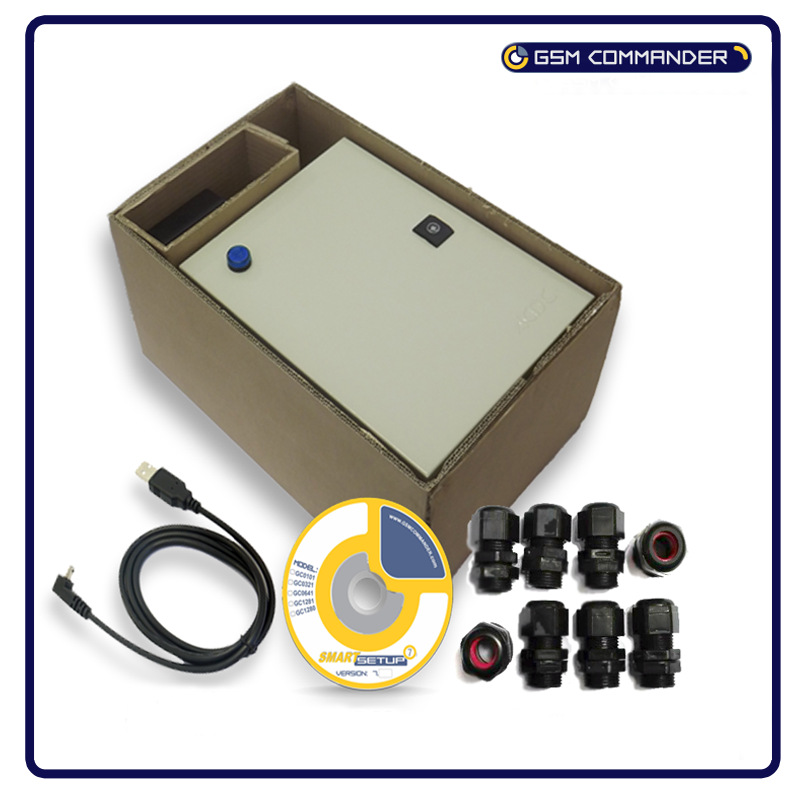

• Supplied with specialized right-angle USB for programming
• Supplied with 8 x Gland Fittings for pre-drilled bottom plate.
