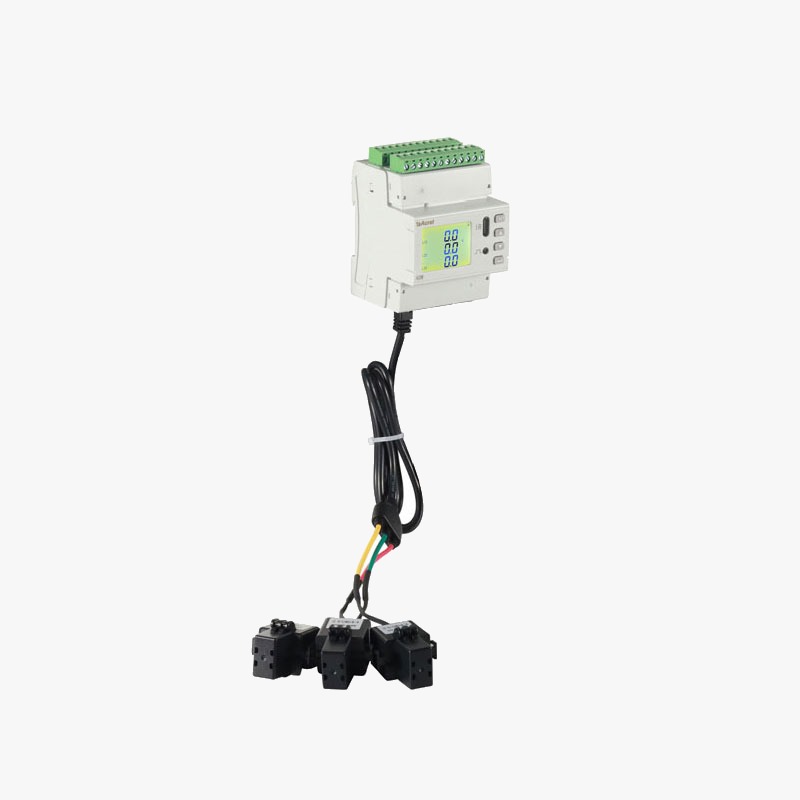

ADW210-D16-1S – ACREL 3 PHASE ENERGY METER WITH MODBUS RTU

Acrel 3 Phase Energy Meter with a single set of 3 Phase CT’s which offer 0-100A per phase

*Note that up to 600A per phase CT’s are available on request

 Full electric parameter measurement of N(1,2,3,4) three-phase circuit, external Current transformer;

 Monitoring three Phase Voltage/Current, Zero sequence Current Frequency;

 Monitoring three Phase power 、total power (active reactive apparent);

 Monitoring three Phase power-factor total power-factor;

 Monitoring Voltage/Current Phase Angle Voltage/Current Degree of unbalance;

 Monitoring Voltage Current total Harmonic and 2-31 Fractional harmonics;

 Record of voltage current and power extremum of current month and last month;

 Maximum Current Maximum power demand and real time Current real time power demand;

 200 event records, records the action of DIDO;

 Support over-voltage, over-current, phase failure, DI linkage and other alarm output;

 4 time zones 14Periods rate setting;

 Four quadrant electric energy,12-month multi rate electric energy;

 31 days four quadrant and multi rate electric energy freezing, Positive and negative energy metering;

 2 channel Switching inputs、2 channel Switching outputs、RS485、Active pulse output(Switchable corresponding

circuit).
